Dew Point Monitor OS 305



• Plug & play – Simply connect your compressed air
• Alarm indication – Via relay outputs
• Precise measurement – ±2 °C Td accuracy


• General compressed air systems
• Compressed air dryers and sensitive equipment
• Plastic injection process resin drying
• Blow moulding process
• Medical gases in hospitals

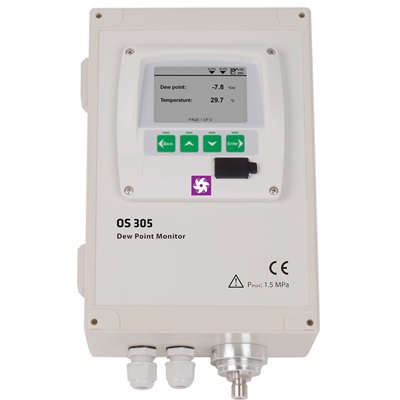

The Dew Point Monitor OS 305 is a comprehensive device designed to measure and display dew points. It connects to the compressed air network through a 6mm quick connect and matching connecting hose. This integrated unit, housed in sturdy casing (IP65), can be wall-mounted for convenience. It enables the programming of two alarm levels (pre and main alarms) with visual indicators or independent relay outputs. This dew point meter offers a straightforward and cost-effective solution for dew point monitoring. Price is in AUD and Excludes GST.

For more information get in touch with your National Filters Representative.

Call  1300 DRY AIR  (1300 379 247)

Dew Point Monitor OS 305
