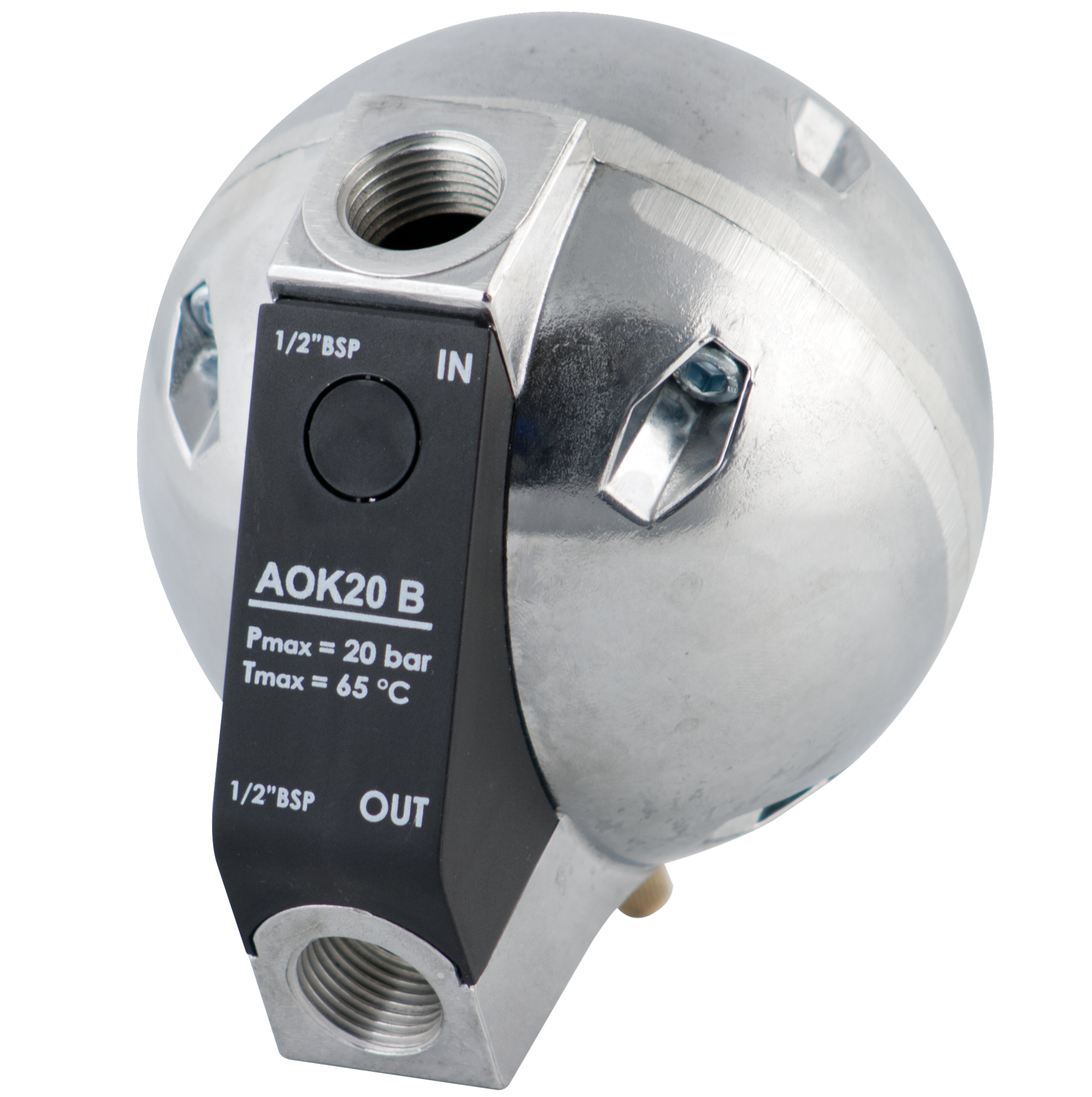

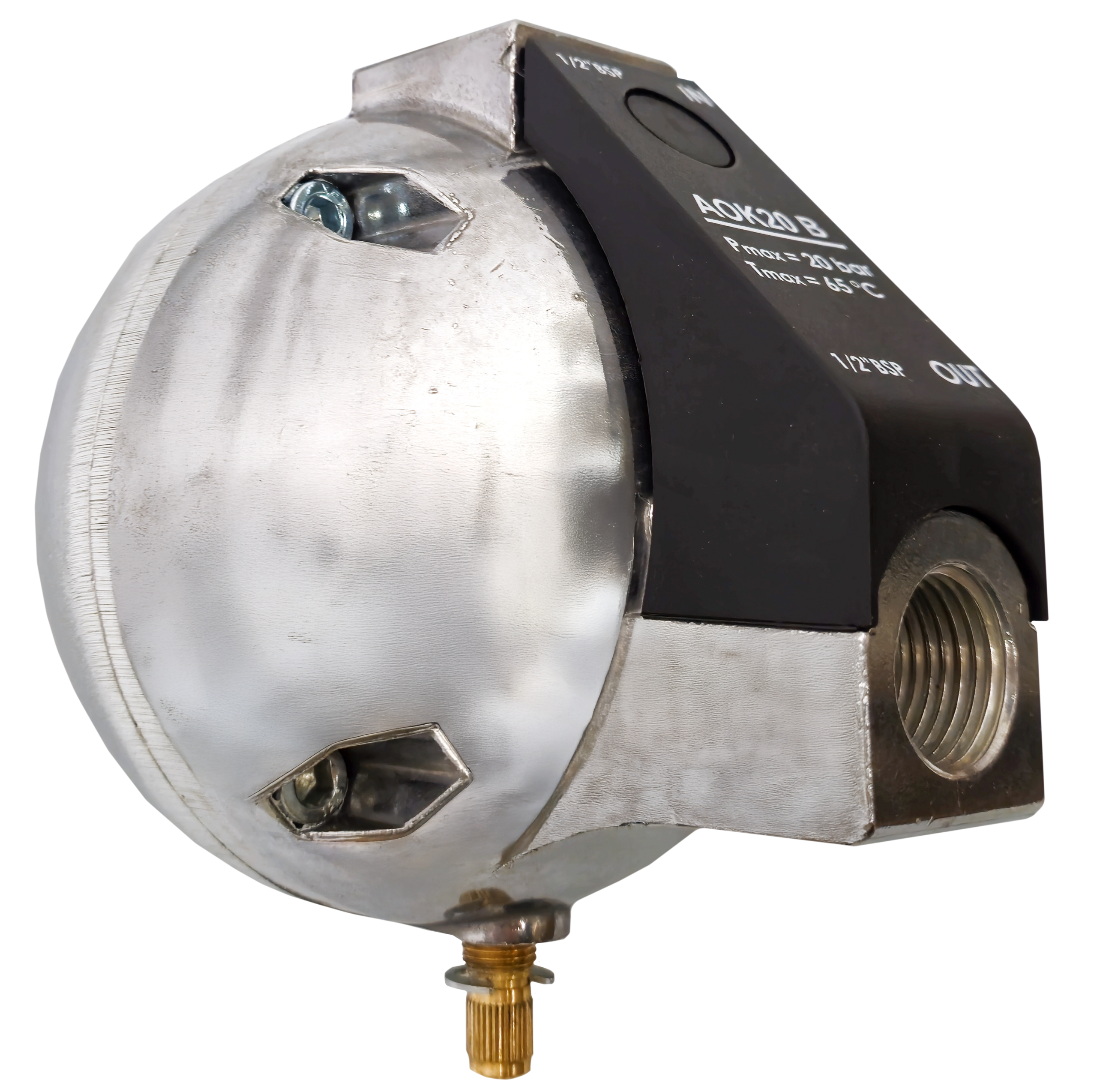

Zero Loss Float Drain 20 bar

$155.00

Price is in AUD and Excludes GST.

National Filters Part Number: AOK20B

SKU: AOK20B Categories: ,

Description

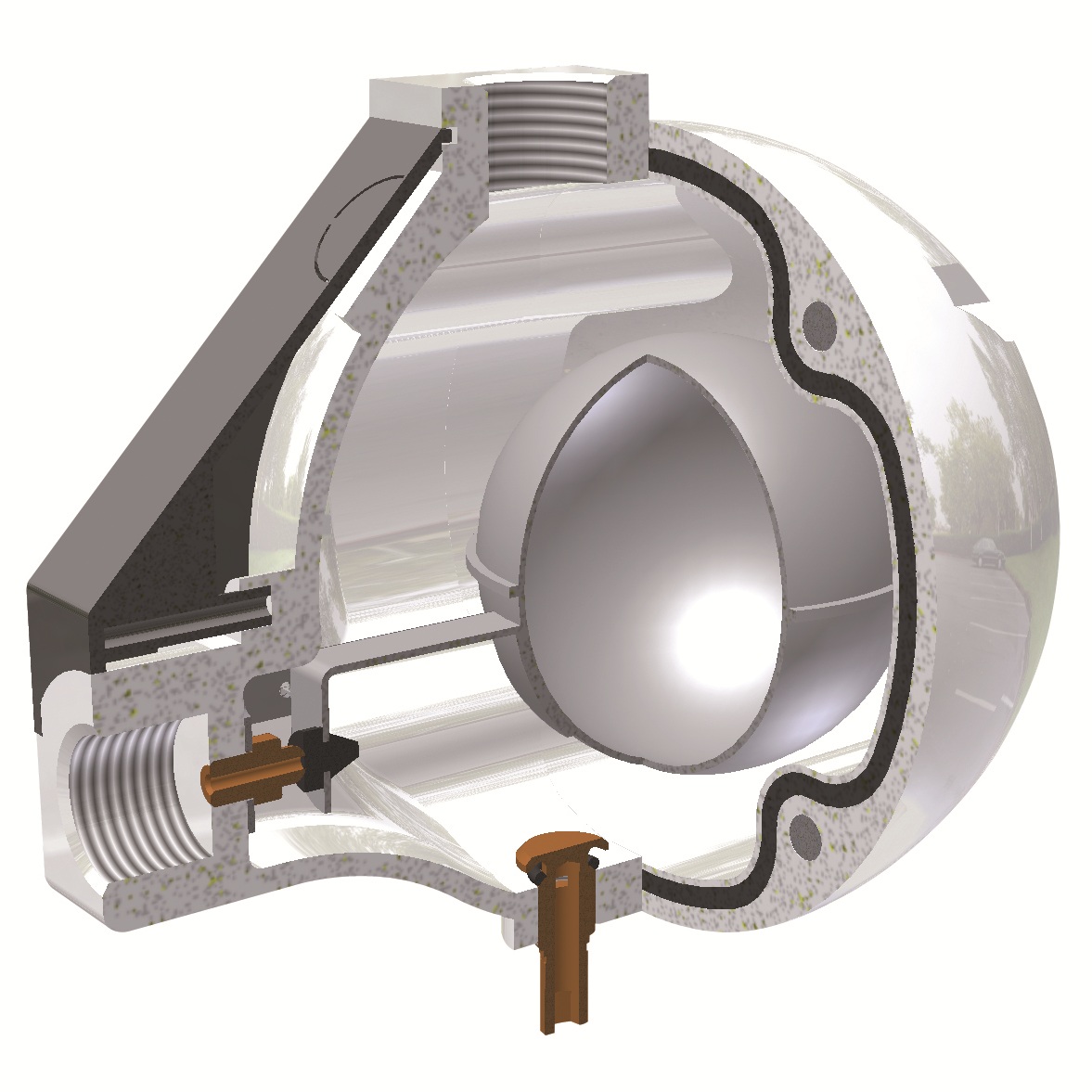

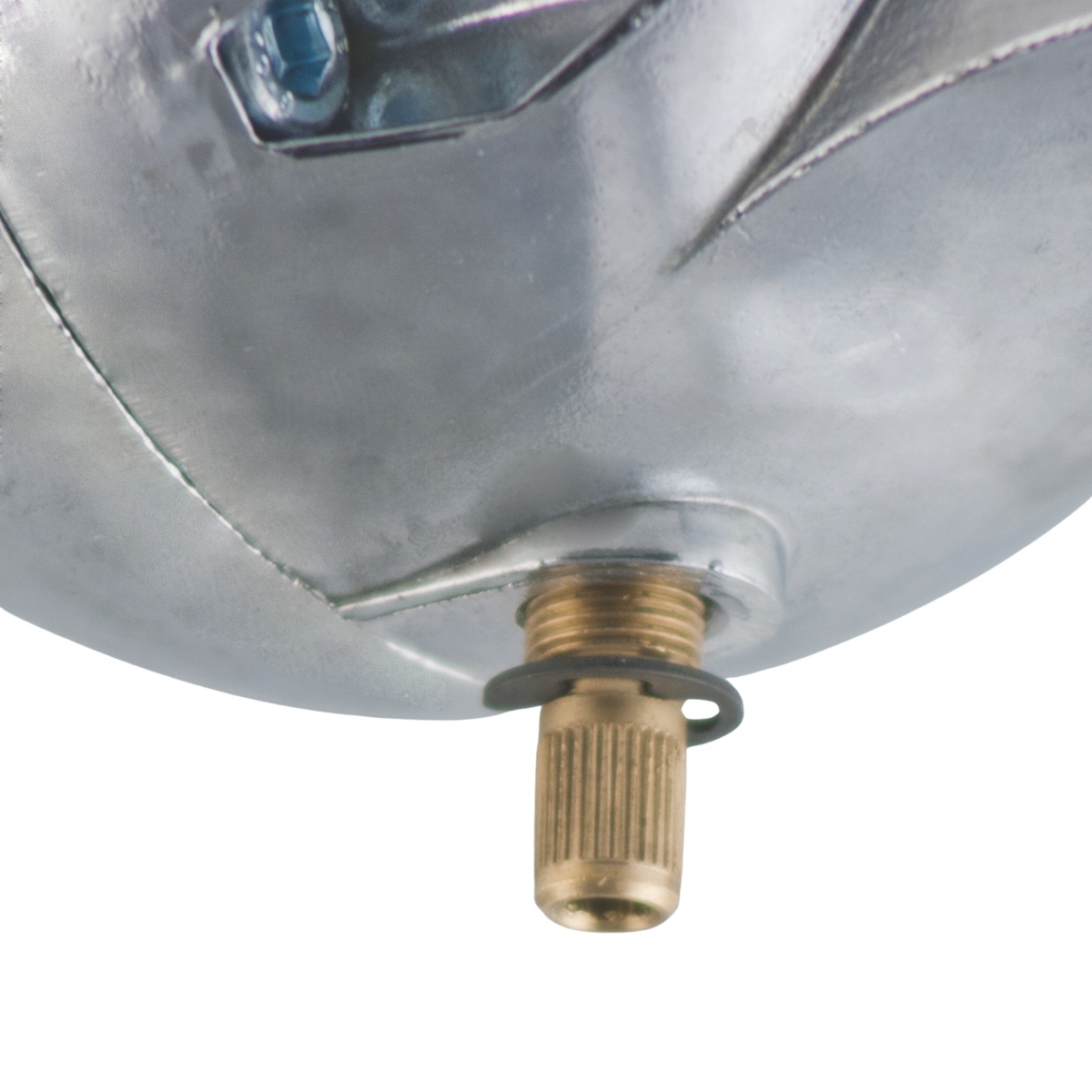

AOK20B has been developed for fully automatic discharging of condensate or any other non-aggressive fluid from compressed air systems. The unit can be installed as an external drain on any application specified in the Data sheet. Condensate accumulates in the aluminium reservoir and when the level is high enough, condensate is discharged from the system without any air loss. A direct acting valve is operated by precise level controlled floater which assures reliable and efficient operation. Thanks to the robust aluminium housing, the AOK20B is suitable for heavy duty applications. AOK20B is also equipped with a separate manual drain for venting. The AOK20B can be used in variety of applications – please refer to the Data Sheet for more details. For applications not listed or any other technical gas please contact National Filters or?your local distributor. Prices Exclude GST.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

AOK20B.pdf

Download

Condensate drain Automatic AOK20B v1.02

Download
